New Interchangeable cutter head modular endmills series, integrates the advantages of solid carbide tools and indexable tools for high-precision, high rigidity and high efficiency
Solid carbide cutter head, with high precision and good consistency.
Self-centering tapered thread coupling, with quick and easy set up and tool changes, high security and reliability , high strength.
Double-locating inaxial and radial directions, with good stability and high mounting precision.
Quicktool head change in machine shortens the supporting time and improves production efficiency.
Three cutter head series, shared a tool holder with indexable interchangeable series can well meet the demands ranging from roughing to finishing operations in face milling, slot milling, square milling, profile milling, ramping, helical interpolation.
Interchangeable cutter head modular
Interchangeable cutter head: flattened, ball-nose and R types
Thread curve surface contact with high precision, good precision and stability
Locating surface with high precision
Ensuring perfect combination between tool holder and tool head
Interchangeable cutter head
There are steel tool holder, welding tool holder, solid carbide tool holder to choose from, they are suitable for various operations with large overhang and high feed rate.
Work piece material: 42CrMo(HRC35)
Milling style: Side milling
Tool head: Q10-GM-4EF-D16.0
Tool holder: G16-QCH-Q10-120S
Cutting modes: Down milling in wet-type
Machine: Vertical machining center
Cutting data: Vc=
Results:New interchangeable cutter head modular endmills, with high precision and good surface quality, consist with solid carbide endmills.
Good rigidity and longer tool life
Work piece material: NAK80 (HRC40)
Milling style: Profiling
Tool: Q10-GM-2BF-D16.0
Tool holder: G16-QCH-Q10
Cutting modes: Down milling in wet-type
Machining requirement: Ra≤0.6μm，When Ra＞0.6μm, Invalid
Machine: Vertical machining center
Cutting data: Vc=

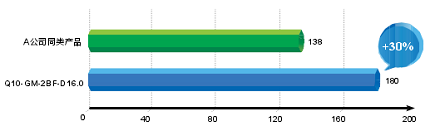

Results: interchangeable cutter head modular endmills with good rigidity and excellent vibration resistance,compared with similar product from company A, it enjoys longer tool life and higher efficiency.
